COLTRI Compressor Predator 140L

Please contact our Stores near you for inquiry.

Original price was: EUR €9,360.00.Current price is: EUR €6,552.00.

Compact power, tireless performance. The new PREDATOR by Coltri Compressors expands the Portables Line, offering high performance in a compact format.

Portable technology, performance Coltri

The breathing air compressor PREDATOR has a flow rate of 140 l/min and a 3 kW single-phase or 3-phase motor, designed for efficiency and reliability everywhere. Equipped with automatic condensate drainage and Autostop, it integrates the new MCH 7 3-stage pumping unit and the Maxifilter purification system for safe air at all times. Ergonomic handles make it easy to carry, while the optional C-Monitor allows monitoring of the final filter and oil change.

Powerful, compact, technological: PREDATOR is ready for any challenge.

Purification System Maxifilter

The Maxifilter is a high-performance purification system designed for use with high-pressure compressors intended for the production of breathing air. It uses a combined molecular sieve and activated carbon filter cartridge, ensuring effective removal of moisture, oil vapors, and other contaminants.

This system ensures that the compressed air meets the standards required for underwater, industrial, and emergency use, offering maximum breathing safety and reliability.

Maxifilter purification system

Standard Equipment

  • 2 Cylinder connections from your choice of DRV DIN 232, DRV DIN 300 or DRV INT/YOKE 232 bar
  • 2 Filling hoses 1.2 m long
  • Pressure holding valve
  • Filter system Maxifilter
  • Carrying handles
  • Frame color Black RAL 9005

Watch it closely



Technical Specifications

DesignProtective CabinetOperating voltage, standard230 V, 60 Hz / 400 V, 50 HzOperating voltage, standard230 V, 60 Hz / 400 V, 50 Hz

Type of gasBreathing air EN 12021 – Nitrox 40% max O2 – Helium – Nitrogen
Suction pressureAtmospheric max 300 millibars
Pressure rating230 bar / 330 bar
Operating pressure230 bar / 330 bar
Max working pressure350 bar
Allowable temperature range-10° C ÷ +40° C
Allowable altitude range0 ÷ 2,000 m SLM
Maximum allowed inclination
DesignProtective Cabinet
Operating voltage, standard230 V, 60 Hz / 400 V, 50 Hz
Other operating voltages

On three-phase electric motors at 60 hz power (kW / hp) increase by 20%.

230 V, 60 Hz / 400 V, 60 Hz
OilColtri ST 755 Synthetic Oil
Oil change interval1 year / 1,000 h
FrameSteel – Color Black RAL 9005 – Powder coated – Scratch resistant

Compressor

Pump group flow rate140 EM140 ET
Measured while filling a 10-liter cylinder from 0-200 bar
tolerance +/- 5% at + 20 °C room temperature.
140 l/min
8.4 m3/h
5 CFM
140 l/min
8.4 m3/h
5 CFM
Purification systemMaxifilter
Cooling air flow140 EM
792 m3/h
140 ET
792 m3/h
Weight140 EM140 ET
Standard model. Dimensions and weight may vary depending on accessories..79 kg
174.2 lb
75 kg
165.3 lb

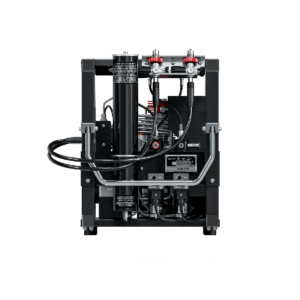

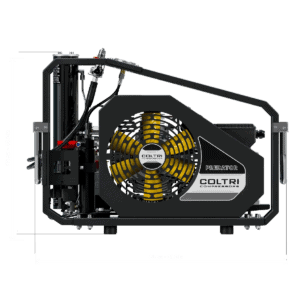

Dimensions81 x 44 x 58 cm
(W x D x H)31.9 x 17.3 x 22.8 in

Engine

Power140 EM
3 kW
4 Hp
140 ET
3 kW
4 Hp
Engine type140 EM
Elettrico monofase
140 ET
Elettrico trifase
Operating voltage / frequency140 EM140 ET
Different voltage and frequency available upon request.230 V, 50 Hz400 V, 50 Hz
Rated current140 EM
20 A
140 ET
5.7 A
Engine RPM (RPM)140 EM
2.25
140 ET
2.25
Protection classIP55
